IP camera Smart Dual Light Dahua WizMind 5 Series. 8MP@25/30ips. 1/1.8" CMOS sensor with ICR and 0.0008 lux. IR illumination and warm light up to 60 m. Motorized lens 2.7-12 mm. 120 dB WDR and advanced imaging functions. WizMind AI analytics with AcuPick,

Name: IP camera Smart Dual Light Dahua WizMind 5 Series. 8MP@25/30ips. 1/1.8" CMOS sensor with ICR and 0.0008 lux. IR illumination and warm light up to 60 m. Motorized lens 2.7-12 mm. 120 dB WDR and advanced imaging functions. WizMind AI analytics with AcuPick,
Brand: DAHUA
SKU: IPC-HFW5859E1P-ZE-IL-2712
Availability: InStock

Usa la rotella di scorrimento del mouse per ingrandire l'immagine

IP camera Smart Dual Light Dahua WizMind 5 Series. 8MP@25/30ips. 1/1.8" CMOS sensor with ICR and 0.0008 lux. IR illumination and warm light up to 60 m. Motorized lens 2.7-12 mm. 120 dB WDR and advanced imaging functions. WizMind AI analytics with AcuPick,

Feedback degli utenti

Spedizione:
Marca:	DAHUA
Unità di misura:	PZ

Cod.Art.:	IPC-HFW5859E1P-ZE-IL-2712
Produttore:	Maggiori dettagli
Disponibilità:	Disponibile Spedito in 7-15 giorni lavorativi
Peso:	1,390 Kg
Quantità:

Servizi

Stampa Richiedi informazioni

Descrizione

Technical Features

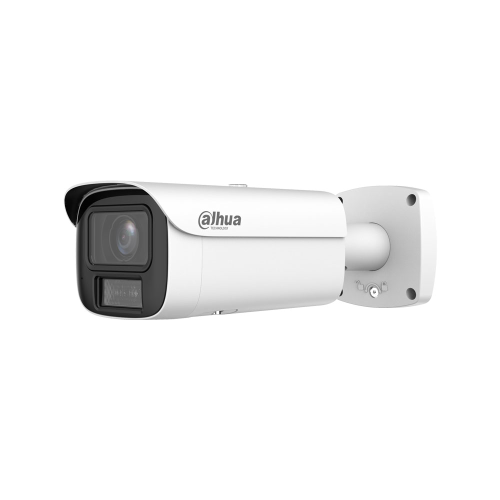

Dahua WizMind 5 Series Bullet Type IP Camera Smart Dual Light
1/1.8" progressive CMOS sensor
Maximum resolution 8MP (3840×2160)
ICR with day night color and B/W modes
Min illumination 0.0008 lux F1.8 color and 0.0004 lux B/W
IR illumination up to 60 m and warm light up to 60 m
Illuminators Smart Dual Light with automatic manual and zoom control
Motorized lens varifocal 2.7-12 mm F1.8
Angle of view H 113°-47° V 60°-23° D 133°-53° WDR 120 dB, BLC, BLC, D 133°-53°, WDR 120 dB, BLC, D 133°-53°
WDR 120 dB, BLC, HLC, 3D NR, SSA, EIS

Video Stream

H.265 H.264 H.264H H.264B and MJPEG codecs in substream
AI Coding AI H.265 and AI H.264 with Smart H.265+ and Smart H.264+
Stream 1: 8MP@25/30 ips
Stream 2: D1@25/30 ips
Stream 3: 1080P@25/30 ips
Stream 4: 720P@25/30 ips
Up to 4 simultaneous streams

Features

ROI up to 4 areas
Image rotation 0° 90° 180° 180° 270° 270°
Privacy with mosaic masks or color blocks
Digital Defog and LDC

Intelligent functions

IVS perimeter protection with intrusion and tripwire with person, vehicle and animal classification
SMD 4.0 with advanced false alarm filtering
AcuPick with intelligent target search
Face detection with attribute extraction and capture optimization
Facial recognition
People counting per line area and queues with reports
Heat map
Video metadata of people, faces and vehicles

Audio

Integrated microphone
Audio input 1 channel RCA
Audio output 1 channel RCA
Bidirectional audio
G.711a G.711u PCM G.726 G.723 Compression

Storage

Micro SD slot up to 1 TB (card not included)
NAS and FTP SFTP recording support

Alarms

Alarm inputs 2 channels
Alarm output 1 channel
Intelligent events by IVS SMD face detection people counting and metadata

Communication interface

RS485 port for control and external devices

Network

RJ45 10/100 Base-T network interface
Protocols IPv4 IPv6 HTTP TCP UDP ARP RTP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P Auto Registration
ONVIF Profile S G T M CGI SDK
DSS DMSS DMSS DoLynk Care Software
iOS and Android mobile access

Power supply

12 VDC (±30 %)
PoE+ 802.3at and ePoE
Maximum power consumption 22.1 W

Environmental

IP67 and IK10 protection
Operating temperature -40 °C to +60 °C (-40 °C to +60 °C)
Humidity up to 95% non-condensing

Physical characteristics

Metal housing
Wall, ceiling or pole installation with optional brackets
Dimensions: 279.8 × 96.7 × 94.9 mm (279.8 × 96.7 × 94.9 mm)
Net weight: 1.09 kg
Gross weight: 1.39 kg
3AXIS: Pan 0°-360°, Tilt 0°-90°, Rotate 0°-360°

Contents

IP Camera Smart Dual Light WizMind DAHUA-5048 (IPC-HFW5859E1P-ZE-IL-2712)

Certifications

CE-LVD EN62368-1
CE-EMC Directive 2014/30/EU
