Technical Features

• Dahua WizSense 5-in-1 XVR
• High performance industrial processor
• Embedded Linux operating system
• Operation interface via Web and local GUI
• 4 BNC inputs compatible with HDCVI, TVI, AHD and CVBS with automatic detection
• IP Inputs: 2 native IP channels + up to 4 channels convertible from BNC
• Maximum supported resolution: up to 5MP
• Incoming bandwidth: 32 Mbps
• Recording bandwidth: 32 Mbps
• Outgoing bandwidth: 32 Mbps
• Video outputs: 1 HDMI and 1 VGA

Video

• BNC inputs: 4 HD/CVBS analog channels
• IP inputs: up to 6 channels with maximum resolution of 6 MP per channel
• Recording resolution:
• CVI: 5MP@25 ips, 5MP@20 ips, 5MP@10/12.5 ips, 4MP@25/30 ips, 1080P@25/30 ips, 720P@25/30/50/60 ips
• TVI: 5MP@20 ips, 5MP@25 ips, 4MP@25/30 ips, 1080P@25/30 ips, 720P@25/30 ips
• AHD: 5MP@20 ips, 4MP@25/30 ips, 1080P@25/30 ips, 720P@25/30 ips
• Primary encoding capability with AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264
• Main encoding with Encode Enhancement on or off depending on configuration
• Substream: D1/CIF up to 15 fps
• Configurable video bitrate between 32 kbps and 6144 kbps
• HDMI and VGA display resolutions: 1920 × 1080, 1280 × 1024 and 1280 × 720
• Multi-screen display: up to 4 quadrants in normal mode / up to 6 quadrants in IP mode
• Synchronized playback: up to 4 channels

Features

• Recording modes: general, alarm, motion detection and intelligent recording modes
• Instant playback, general, event, tag and intelligent playback
• Backup via USB device or network
• Remote access from web browser and client software
• Compatibility with third-party Panasonic, Sony, Hanwha, Axis and Arecont cameras

Intelligent functions

• 4 channels with SMD Plus from recorder for person and vehicle detection
• 6 channels with SMD from camera
• 4 channels with perimeter protection from the recorder with up to 10 IVS rules per channel
• 2 channels with AcuPick from the recorder
• 2 channels with face detection from recorder
• 2 channels with face recognition from recorder
• Facial attributes: up to 6 attributes
• Facial database capacity: up to 10 databases with 10,000 images
• Video quality analytics from recorder on 4 channels
• Scene change detection from recorder on 1 channel
• Irregular black block masking detection on 1 channel

Audio

• Audio input: 1 channel RCA
• Audio output: 1 channel RCA
• Audio over coax: 4 channels
• Bi-directional audio over coaxial
• Bi-directional audio local and network sharing the first channel input
• Audio sampling frequency: 8 kHz
• Audio bitrate: 64 kbps
• Audio compression: G.711a, G.711u and PCM

Storage

• 1 SATA interface
• Maximum hard disk capacity: up to 16 TB

Alarms

• General alarms for motion detection, camera alarm and network alarm
• Anomaly alarms for disk failure, insufficient space, network disconnection and IP conflict
• Video loss and video tampering alarms
• Intelligent alarms for face detection, face recognition, perimeter protection, and SMD Plus
• Alarm actions: recording, snapshot, audio, buzzer, log, preset, and email

Communication interface

• RS-485
• 2 USB 2.0 ports

Network

• Ethernet RJ45 10/100 Mbps interface
• Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
• ONVIF 24.12 support with S, G and T profiles
• Interoperability via CGI and SDK
• Mobile access from iOS and Android
• Supported browsers: Chrome, IE, Safari, Edge and Firefox

Power supply

• 12 V DC
• Power consumption less than 5 W without hard disk

Environmental

• Operating temperature: -10 °C to +55 °C
• Storage temperature: -20 °C to +60 °C
• Relative humidity: 10 %-90 % non-condensing

Physical characteristics

• Installation: tabletop
• Dimensions: 325.0 × 257.1 × 55.0 mm (1.5 × 257.1 × 55.0 mm)
• Net weight: 1.29 kg
• Gross weight: 1.71 kg

Contents

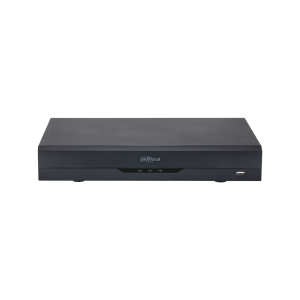

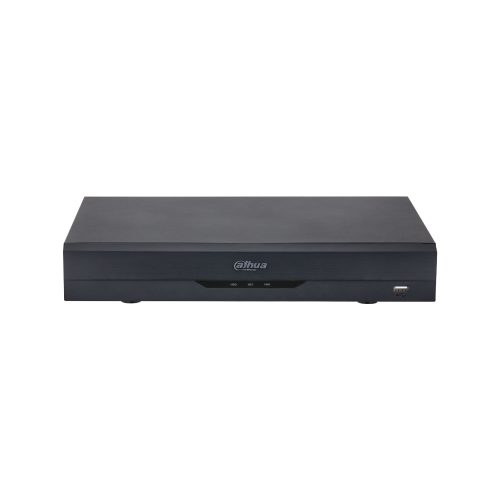

• Dahua DAHUA-5018 5-in-1 XVR Recorder (XVR5104H-I3/T)

Certifications

• CE-LVD IEC 62368-1
• CE-EMC EN 61000-3-2, EN 61000-3-3-3, EN 55032, EN 55035, EN 55024, EN 50130-4
