Technical Features

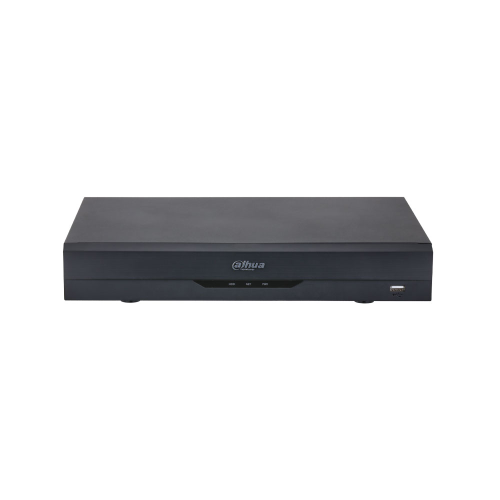

• XVR 5 in 1 Dahua WizSense
• Operating system: Embedded Linux
• Processor: Industrial-grade processor
• Operation interface: Web and local GUI
• 4 BNC inputs with HDCVI, TVI, AHD and CVBS support
• IP Inputs: up to 8 channels (4 native IP + 4 convertible from BNC)
• Resolution supported: up to 4K and 5MP
• Video outputs: 1 HDMI and 1 VGA

Video

• BNC inputs: 4 channels HDCVI, TVI, AHD, CVBS with auto-sensing
• IP inputs: up to 8 channels, maximum 8 MP per channel
• Bandwidth: 64 Mbps incoming, 64 Mbps recording, 64 Mbps outgoing
• Recording resolution:
  • CVI: 4K@25/30ips, 4K@12.5/15ips, 6MP@20ips, 5MP@25ips, 5MP@20ips, 4MP@25/30ips, 1080p@25/30ips, 720p@25/30ips, 720p@50/60ips
  • TVI: 4K@15ips, 5MP (2560×1944)@20ips, 5MP (2960×1665)@20ips, 4MP@25/30ips, 3MP@25/30ips, 1080p@25/30ips, 720p@25/30ips
  • AHD: 4K@15ips, 5MP@20ips, 4MP@25/30ips, 3MP@25/30ips, 1080p@25/30ips, 720p@25/30ips
• Dual-stream encoding
• Video bitrate: 32 kbps to 6144 kbps
• Substream: 960H@1-15ips, D1/CIF@1-25/30ips
• HDMI Display Resolutions: 3840×2160, 1920×1080, 1280×1024, 1280×720
• VGA display resolutions: 1920×1080, 1280×1024, 1280×720
• Multi-screen display: up to 4 quadrants in normal mode / up to 9 quadrants in IP mode
• Synchronized playback: 1/4
• Video Codecs: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264

Features

• Recording modes: general, alarm, motion detection, smart, POS
• Playback modes: snapshot, general, event-driven, tag-driven, intelligent
• Backup: USB device and network

Intelligent functions

• AcuPick from recorder: 4 channels
• Perimeter protection from recorder: 4 channels, up to 10 IVS rules per channel
• SMD Plus from recorder: 4 channels (secondary human/vehicle filtering)
• SMD from camera: 8 channels
• Face recognition from recorder: 2 channels
• Face detection from recorder: 2 channels (up to 12 frames/s per channel)
• Privacy protection from recorder: 1 channel
• Video quality analysis from recorder: 4 channels
• Scene change from recorder: 1 channel
• Irregular Black Block Masking from recorder: 1 channel
• EPTZ from recorder: 1 channel

Audio

• Audio input: 1 channel RCA and audio via coaxial on 4 channels BNC
• Audio output: 1 channel RCA
• Bi-directional audio: 4-channel BNC coaxial and local/network bi-directional audio (shares input of channel 1)
• Audio sampling: 8 kHz, 16 bit
• Audio bitrate: 64 kbps
• Audio Compression: G.711a, G.711u, PCM

Storage

• 1 SATA interface, up to 16 TB

Alarms

• General alarms: motion detection, alarm box, HDCVI alarm, external camera alarm, network alarm, PIR alarm
• Anomaly alarms: no disk, disk error, low space, low quota, network disconnection, IP conflict, MAC conflict, video loss, video tampering, offline camera
• Intelligent alarms: face detection, face recognition, perimeter protection, SMD Plus
• Alarm link: recording, snapshot (pan), IPC external alarm output, audio, buzzer, log, preset, email

Communication interface

• RS-485
• 2 USB 2.0 ports (1 front, 1 rear)

Network

• Network interface: 1 Ethernet port 10/100 Mbps RJ45
• Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
• Mobile access: iOS, Android
• Interoperability: ONVIF 25.06 (Profile T, Profile S, Profile G), CGI, SDK
• Browsers: Chrome, IE, Safari, Edge, Firefox
• Third-party camera support: Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF

Power supply

• 12 V DC, 2 A
• Power consumption: < 7 W without hard disk

Environmental

• Operating temperature: -10 °C to +55 °C (-10 °C to +55 °C)
• Storage temperature: -20 °C to +60 °C (-4 °F to +60 °F)
• Relative Humidity: 10% to 90% non-condensing

Physical characteristics

• Installation: Tabletop
• Dimensions: 325.0 × 257.1 × 55.0 mm (1.5 × 257.1 × 55.0 mm)
• Net weight: 1.39 kg
• Gross weight: 1.81 kg

Contents

• Dahua WizSense 5-in-1 XVR DAHUA-5023 (XVR5104H-4KL-I3/T)

Certifications

• CE-LVD: IEC 62368-1:2014
• CE-EMC: EN IEC 61000-3-2-2:2019, EN 61000-3-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
