Technical features

• XVR 5 in 1 Dahua
• BNC inputs: 4 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
• IP inputs: up to 8 channels (4 native IP + 4 convertible channels)
• Supported resolution: up to 4K@15 fps and 5MP@25 fps
• Video output: HDMI and VGA

Video

• BNC inputs: 4 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
• IP inputs: up to 8 channels; incoming, outgoing and recording bandwidth 64 Mbps
• Recording resolution:
  • CVI: 4K (25/30 fps, 12.5/15 fps), 6MP (20 fps), 5MP (25 fps, 20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
  • TVI: 4K (15 ips), 5MP (2560×1944@20 ips, 2960×1665@20 ips), 4MP (25/30 ips), 3MP (25/30 ips), 1080P (25/30 ips), 720P (25/30 ips)
  • AHD: 4K (15 fps), 5MP (20 fps), 4MP (25/30 fps), 3MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
• Main encoding capability:
  • Channel 1: up to 4K@15 ips, 6MP@20 ips, 5MP@25 ips.
  • Other channels: up to 4K@7 ips, 6MP@10 ips, 5MP@12 ips
  • Additional modes: 4K-N/5MP@1~15 ips, 1080P/720P/960H/D1/CIF@1~25/30 ips
• Substream: 960H@1~15 ips, D1/CIF@1~25/30 ips
• Display: HDMI (3840×2160, 1920×1080, 1280×1024, 1280×720), VGA (1920×1080, 1280×1024, 1280×720)
• Multi-screen display: up to 4 quadrants in normal mode / up to 9 quadrants in IP mode
• Synchronized playback: 1/4 channel
• Video Codecs: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264

Intelligent functions

• 4 channels with AcuPick from the recorder
• 4 channels with perimeter protection from the recorder (10 IVS rules per channel)
• 2 channels with face recognition from the recorder
• 2 channels with face detection from the recorder
• 4 channels with SMD Plus from recorder
• 8 channels with SMD from camera
• 1 channel with EPTZ from recorder
• 1 channel with privacy protection from the recorder
• 1 channel with scene change detection
• 1 channel with irregular black mask
• 4 channels with image quality analysis from recorder

Audio

• 1 RCA input
• 1 RCA output
• 4 audio channels via coaxial
• Bidirectional audio
• Compression: G.711a, G.711u, PCM

Storage

• 1 SATA port, up to 16 TB (not included)

Alarms

• General alarms: motion, HDCVI alarm, external camera alarm, network, PIR
• Anomaly alarms: no disk, disk error, insufficient space, network disconnection, IP/MAC conflict, video loss, tampering, camera offline
• Intelligent alarms: face detection, face recognition, perimeter protection, SMD Plus
• Alarm link: recording, snapshot, external IPC alarm, audio, buzzer, log, preset, email

Communication interface

• 2 rear USB 2.0 ports
• 1 HDMI port
• 1 VGA port

Network

• RJ-45 10/100 Mbps port
• Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
• Interoperability: ONVIF 25.06 (Profile T, S, G), CGI, SDK
• Supported Browsers: Chrome, IE, Safari, Edge, Firefox

Power

• 12 VDC, 2 A
• Power consumption: <7 W (without HDD)

Environmental

• Operating Temp.: -10 °C ~ +55 °C
• Storage temp.: -20 °C ~ +60 °C
• Humidity: 10%~90% noncondensing

Physical characteristics

• Tabletop installation
• Dimensions: 204.6 × 211.1 × 45.8 mm (204.6 × 211.1 × 45.8 mm)
• Net weight: 0.54 kg
• Gross weight: 1.07 kg

Contents

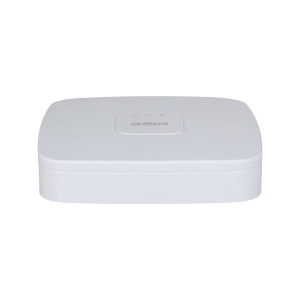

• Dahua 4-channel 5-in-1 XVR DAHUA-5040 (XVR5104C-4KL-I3/T)

Certifications

• CE-LVD: IEC 62368-1:2014
• CE-EMC: EN IEC 61000-3-2-2:2019, EN 61000-3-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
