Technical features

• XVR 5 in 1 Dahua
• BNC inputs: 16 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
• IP inputs: up to 24 channels (8 native IP + 16 convertible channels)
• Supported resolution: up to 5MP@25/30 ips
• Video output: HDMI and VGA

Video

• BNC inputs: 16 channels (HDCVI, AHD, TVI, CVBS auto-detectable)
• IP inputs: up to 24 channels; incoming, outgoing and recording bandwidth 128 Mbps
• Recording resolution:
  • CVI: 5MP (25 fps), 5MP (20 fps), 5MP (10/12.5 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps)
  • TVI: 5MP (2560×1944@20 ips, 2960×1665@20/25 ips), 4MP (25/30 ips), 1080P (25/30 ips), 720P (25/30 ips)
  • AHD: 5MP (20 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps)
• Main encoding capability:
  • Channels 1-4: 5M-N@1~25 ips / 4M-N-1080P@1~30 ips.
  • Rest of channels: 5M-N@1~12 ips / 4M-N-1080P@1~15 ips
  • 1080N/720P/960H/D1/CIF@1~30 ips
• Substream: D1/CIF@1~15 ips
• Display: HDMI (3840×2160, 1920×1080, 1280×1024, 1280×720), VGA (1920×1080, 1280×1024, 1280×720)
• Multi-screen display: up to 16 quadrants in normal mode / up to 25 quadrants in IP mode
• Synchronized playback: 1/4/9/16 channels
• Video Codecs: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264

Smart features

• 2 channels with AcuPick from the recorder
• 4 channels with perimeter protection from recorder (10 IVS rules per channel)
• 2 channels with face recognition from the recorder
• 2 channels with face detection from the recorder
• 16 channels with SMD Plus from recorder
• 24 channels with SMD from camera
• 16 channels with image quality analysis from the recorder
• 1 channel with scene change detection
• 1 channel with irregular black mask

Audio

• 16 RCA inputs
• 16 coaxial audio channels
• 1 RCA output
• Bidirectional audio
• Compression: G.711a, G.711u, PCM

Storage

• 1 SATA port, up to 16 TB (not included)

Alarms

• Alarm inputs: 16
• Alarm outputs: 3
• General alarms: motion, HDCVI alarm, external camera alarm, network, PIR
• Anomaly alarms: no disk, disk error, insufficient space, network disconnection, IP/MAC conflict, video loss, tampering, camera offline
• Intelligent alarms: face detection, face recognition, perimeter protection, SMD Plus
• Alarm linkage: recording, snapshot, external IPC alarm, audio, buzzer, log, preset, email

Communication interface

• 2 USB ports (1 front USB 2.0, 1 rear USB 3.0)
• 1 HDMI port
• 1 VGA port
• 1 RS-485 port

Network

• RJ-45 10/100/1000 Mbps port
• Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
• Interoperability: ONVIF 24.12 (Profile T, S, G), CGI, SDK
• Supported Browsers: Chrome, IE, Safari, Edge, Firefox

Power

• 12 VDC, 2 A
• Power consumption: <12 W (without HDD)

Environmental

• Operating Temp.: -10 °C ~ +55 °C
• Storage temp.: -20 °C ~ +60 °C
• Humidity: 10%~90% non-condensing

Physical characteristics

• Tabletop installation
• Dimensions: 325.0 × 257.1 × 55.0 mm (1.5 × 257.1 × 55.0 mm)
• Net weight: 1.30 kg
• Gross weight: 2.11 kg

Contents

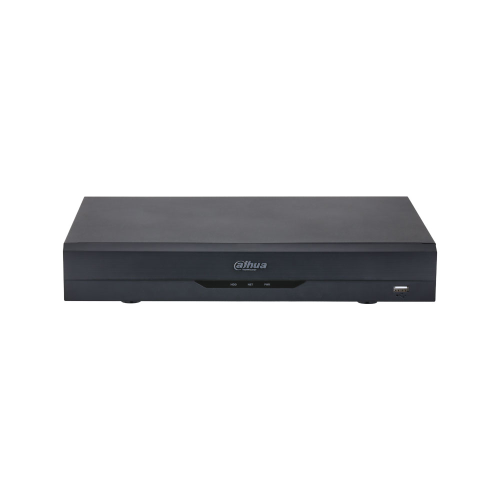

• Dahua 16-channel 5-in-1 XVR DAHUA-5047 (XVR5116HE-I3/T)

Certifications

• CE-LVD: IEC 62368-1:2014
• CE-EMC: EN IEC 61000-3-2-2:2019, EN 61000-3-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
